Tech Specs

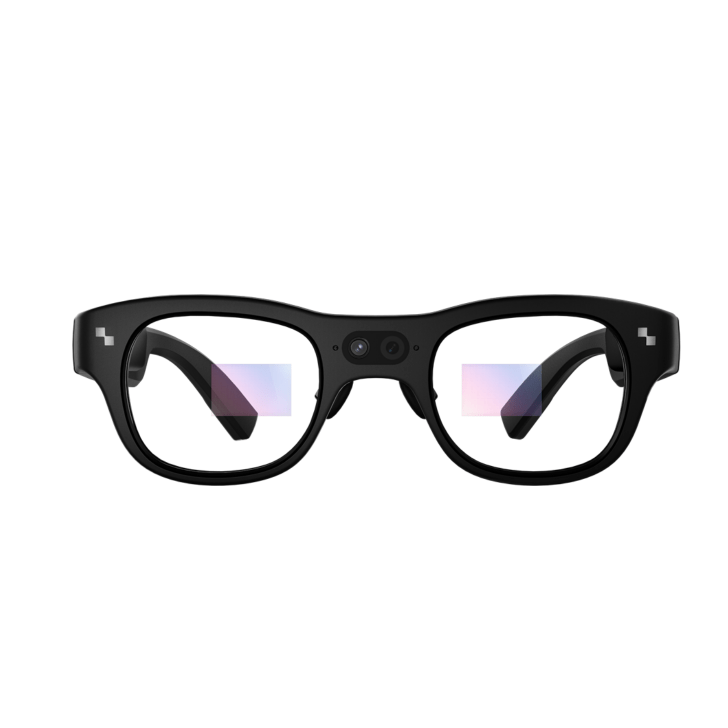

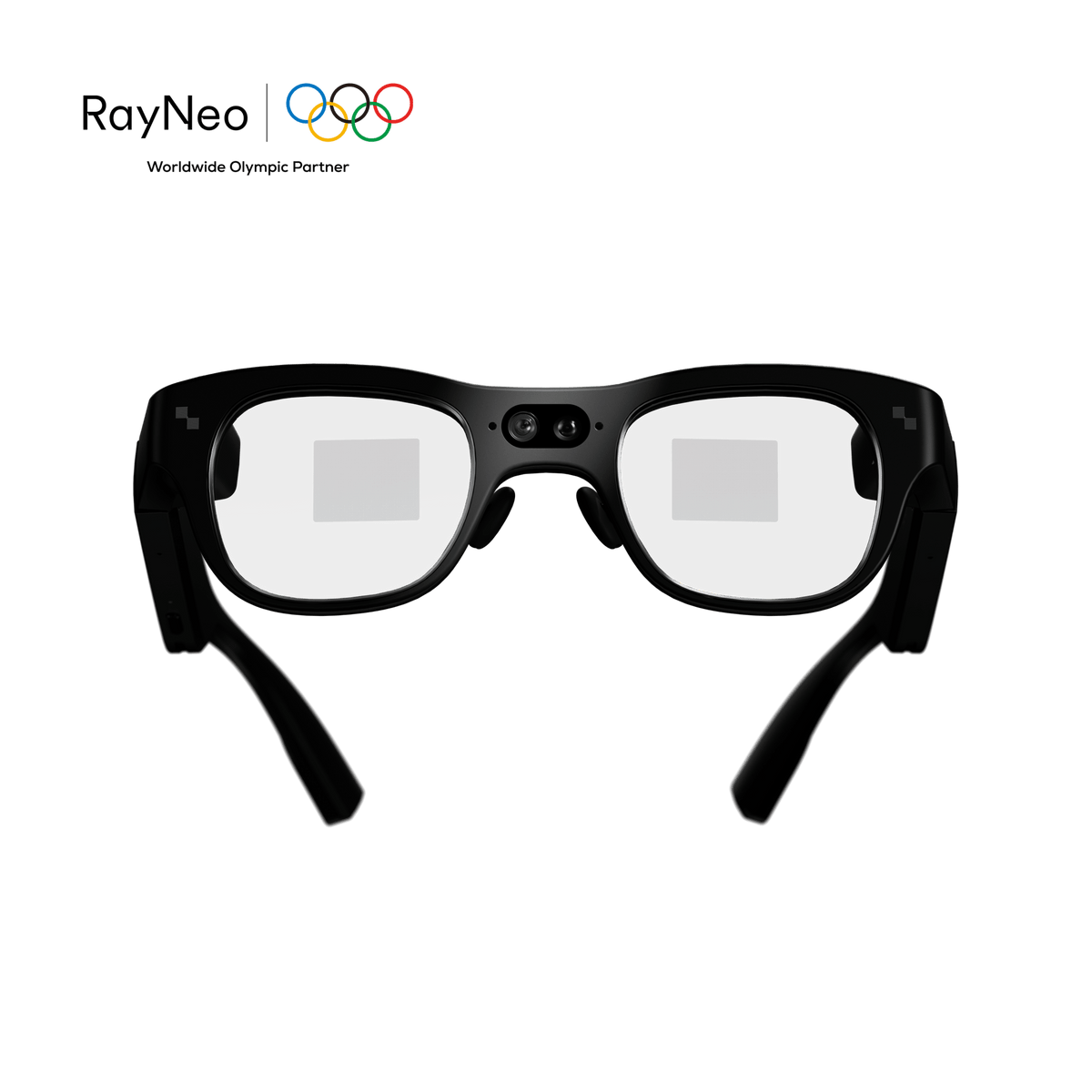

X3 Pro
Binocular Full-Color AI+AR Glasses
Nanolithography Etched Waveguide + MicroLED
RayNeo AIOS
Qualcomm's AR1 Gen 1 Platform
RayNeo Image Plus Dual Camera
Dual Opposing Acoustic Chamber Design
Optics
Binocular Diffractive Waveguide
MicroLED Display (RayNeo Firefly Optical Engine)
3,500 nits avg. Brightness | 6,000 nits Peak Brightness
640 * 480 Resolution | 16.77
Refresh Rate (Adaptive)
30° FOV
Hardware
Qualcomm Snapdragon AR1 Gen 1 Platform
4GB RAM + 32GB Storage
245 mAh Battery Capacity | Type-C Charging Port | Recharge in 38 mins
Image & Video
RayNeo Image Plus | RGB Camera + OV Spatial Camera
Sony IMX681RGB Camera | 12MP | F2.2 Aperture | 16mm Ultra-wide Angle
OV Spatial Camera | F2.0 Aperture | Ultra-low Consumption | 6DoF Spatial Location
Dual Opposing Acoustic Chamber Design | Mic*3 | Narrow Beamforming | Noise Cancellation
Connectivity
USB 2.0
Wi-Fi 6
2.4/5GHz | 802.11 a/b/g/n/ac
Bluetooth 5.2 | 2.4GHz
Sensor
Accelerometer | Gyroscope | Magnetometer | Ambient Light Sensor | Wear Detection
Operation
5-Dimension Template Control | Voice Control | Phone Air Mouse Control | Apple Watch Control* (Support Apple Watch S7 and later)
Size & Weight
Size: 153.16 * 45.65 * 168.6 mm
Weight: 76+/-1g
*Actual dimensions may vary due to configuration, manufacturing, and measurement methods. Please refer to the actual product.
Operating System
RayNeo AIOS
In The Box
RayNeo X3 Pro
QTY: 1
Charging Cable
QTY: 1
Nose Pad
QTY: 1
Cleaning Cloth & Carry Case
QTY: 1
Quick Start Guide & User Manual
QTY: 1
Prescription Lens Sample
QTY: 1
